Mmadụ Bịa ka KingSong PCB Technology .

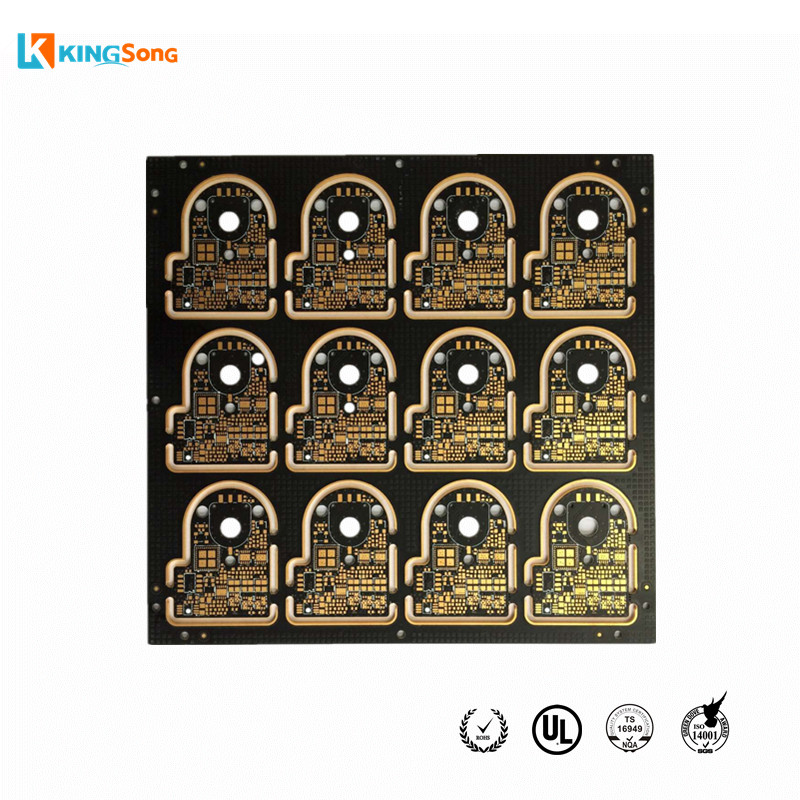

EDGE plated With Gold Manufacturing Of PCB
Njikọ Services, dị ka: Manufacturing Of PCB, Manufacturing Of multilayer PCB, Manufacturing PCB China wdg
1.Detail PCB Manufacturing ike:
| Mba |
item |
Mass Production |
prototype |
| 1 |
n'ígwé |
1-8 n'ígwé |
1-20 n'ígwé |
| 2 |
Max. Panel Size |
600 * 770mm (23.62 "* 30,31") |
600 * 770mm (23.62 "* 30,31") 500 * 1200mm (19.69 "* 47,24") |
| 3 |
Max.Board ọkpụrụkpụ |
8.5mm |
8.5mm |
| 4 |
Min. Board ọkpụrụkpụ |
2L: 0.3mm,
4L: 0.4mm,
6L: 0.8mm |
2L: 0.2mm,
4L: 0.4mm.
6L: 0.6mm |
| 5 |
Min Ne Layer nwechapụ |
0.1mm (4mil) |
0.1mm (4mil) |
| 6 |
Min Line obosara |
0.1mm (4/4 nnù) |
0.075mm (3/3 nnù) |
| 7 |
Min Line ohere |
0.1mm (4/4 nnù) |
0.075mm (3/3 nnù) |
| 8 |
Min.Hole Size |
0.15mm (8mil) |
0.1mm (6mil) |
| 9 |
Min plated oghere ọkpụrụkpụ |
20um (0.8mil) |
20um (0.8mil) |
| 10 |
Min Blind / liri oghere size |
0.2mm (8mil) |
0.2mm (1-8layers) (8mil) |
| 11 |
PTH Dia. ndidi |
± 0.076mm (± 3mil) |
± 0.076mm (± 3mil) |
| 12 |
Non PTH Dia. ndidi |
± 0.05mm (± 2mil) |
± 0.05mm (± 2mil) |
| 13 |
Oghere Position ndiiche |
± 0.05mm (± 2mil) |
± 0.05mm (± 2mil) |
| 14 |
arọ Coppe |
4oz / 140μm |
6oz / 175μm |
| 15 |
Min S / M Ẹtop |
0.1mm (4mil) |
0.1mm (4mil) |
| 16 |
Soldermask agba |
Green, nwa, Blue, White, Yellow, Red |
Green, nwa, Blue, White, Yellow, Red |
| 17 |
Silkscreen agba |
White, Yellow, Red, Black |
White, Yellow, Red, Black |
| 18 |
ndepụta |
Nsochi usoro, V-uzo, Beveling ntụmadị |
Nsochi usoro, V-uzo, Beveling ntụmadị |
| 19 |
ndepụta Ndidi |
± 0.15mm ± 6mil |
± 0.15mm (± 6mil) |
| 20 |
Peelable nkpuchi |
Top, na ala, okpukpu abụọ kwadoro |
Top, na ala, okpukpu abụọ kwadoro |
| 21 |
achịkwa Impedance |
+/- 10% |
+/- 7% |
| 22 |
mkpuchi na-emegide |
1 × 1012Ω (Nkịtị) |
1 × 1012Ω (Nkịtị) |
| 23 |
Site Oghere Nguzogide |
<300Ω (Nkịtị) |
<300Ω (Nkịtị) |
| 24 |
kwes Shock |
3 × 10sec @ 288 ℃ |
3 × 10sec @ 288 ℃ |
| 25 |
Ogologo na ighikota |
≤0.7% |
≤0.7% |
| 26 |
electric Ike |
> 1.3KV / mm |
> 1.4KV / mm |
| 27 |
bee Ike |
1.4N / mm |
1.4N / mm |
| 28 |
Solder Nkpuchi abrasion |
> 6H |
> 6H |
| 29 |
Flammability |
94V-0 |
94V-0 |
| 30 |
Test voltaji |
50-330V |
50-330V |
2.PCB ụzọ oge: (ma ọ bụrụ na ị chọrọ ngwa ngwa ọrụ, anyị na-ike izute)
| Description |
Ugboro abụọ Layer |
4 Layer |
6 Layer |
8 Layer |
10 Layer ma ọ bụ n'elu |
| Sample (WD) |
4 |
7 |
8 |
10 |
12 |
| Mass mmepụta (WD) |
7-9 |
10-12 |
13-15 |
16 |
20 |
3.Package: Ne agụụ mbukota, Outer ọkọlọtọ katọn igbe mbukota.
4.Shipping:
A: Site DHL, gbasie, FedEx, TNT wdg
B: Site oké osimiri maka uka ukwu dị ka ndị ahịa chọrọ.
5.If mkpa e kwuru maka gị PCB oru ngo, PLS enye esonụ Ama:
A: Quote ibu,
B: Gerber faịlụ na 274-x format,
C: ụzụ chọrọ ma ọ bụ kwa (ihe onwunwe, oyi akwa, ọla kọpa ọkpụrụkpụ,
osisi ọkpụrụkpụ, n'elu finishing, solder nkpuchi / silkscreen agba ...)
PLS kpọtụrụ anyị kpamkpam izipu ase, ekele maka nkwado gị n'ọdịnihu!
